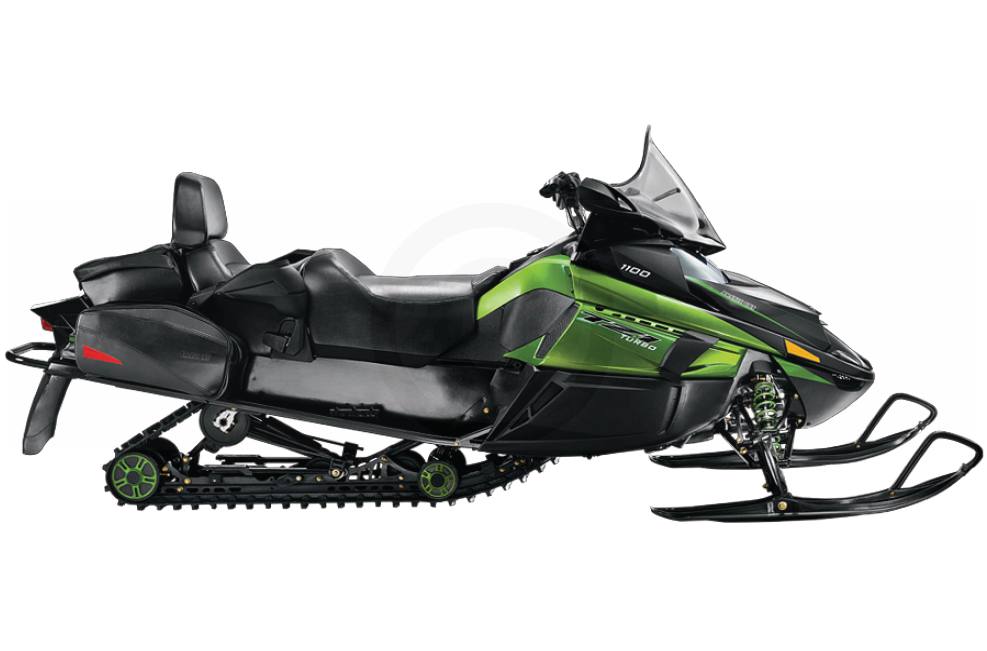

2010 Arctic Cat TZ1 Turbo LXR Limited
Request a Quote Financing Calculator Financing Form

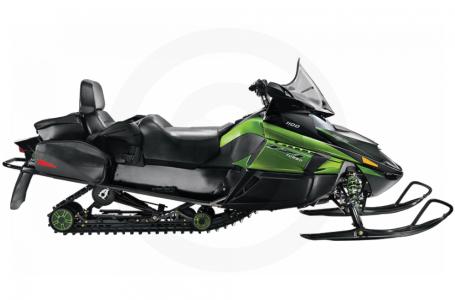

Click here to view full image.
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Type: 4-stroke
    • Displacement: 1056 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 98 x 70 mm
    • Lubrication: Dry sump
    • Ignition: Full transistor/coil at plug
    • Carburetion: 46 mm single throttle body EFI
    • Exhaust: Turbocharger with stainless steel muffler
    • Fuel Capacity: 10.8 gal.
    Power Train
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VII double-wishbone A-arms with FOX® Zero Pro (IFP) shocks, adjustable preload springs and sway bar
    • Front travel: 9.5 in.
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    • Rear travel: 13.3 in.
    Dimensions
    • Overall length: 128 in.
    • Overall width: 48 in.
    • Ski stance: 43 in.
    • Track width: 15 in.
    • Track length: 144 in.
    • Lug: 1.25 in.
    Color
    • Color: Arctic Metallic Green
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Electric gas gauge
    • Low oil light
    • Coolant overheat light
    • Electric start
    • Remote electric start
    • Push-button reverse
    • Mirrors
    • High/low hand warmer
    • High/low thumb warmer
    • Heated driver and passenger seats
    • High windshield
    • Detachable passenger seat
    • Rack
    • 3 storage bags
    • Passenger handwarmers
    • Passenger wind deflectors
    • Adjustable backrest
    • Accessory outlet
    • Clock
    • Deluxe Gauge
    Optional Features
    • Cat Comm™
    • Engine heater
    • Tether switch
    • Hitch
    • Touring rack
    • Sport bumper

    Specifications

    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel muffler
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX® Zero Pro (IFP) shocks, adjustable preload springs and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    Rear Travel 13.3 in.
    Ski Type UHMW plastic saddleless ski
    Ski Stance 43 in.
    Track Dimensions Width: 15 in.; Length: 144 in.
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb) headlight
    Fuel Capacity 10.8 gal.
    Color Arctic Metallic Green
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Standard

    Compare Models

    		 Print








    Year 2010
    Manufacturer Arctic Cat
    Model TZ1 Turbo LXR Limited
    Style Touring
    MSRP* $18,499.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel muffler
    Alternator
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb) headlight
    Fuel Capacity 10.8 gal.
    Dry Weight
    Windshield
    Color Arctic Metallic Green
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Standard
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX® Zero Pro (IFP) shocks, adjustable preload springs and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    Rear Travel 13.3 in.
    Ski Type UHMW plastic saddleless ski
    Ski Stance 43 in.
    Track Type
    Track Dimensions Width: 15 in.; Length: 144 in.

    Current Promotions

    There are currently no promotions available for this product.
